- 给定函数$f(x)=(6+x_1+x_2)^2+(2-3x_1-3x_2-x_1x_2)^2$，求在点$\hat{X}=(-4,6)^T$处的最速下降方向和牛顿方向
最速下降方向为为负梯度方向：$dk=-g_k=-\nabla f(\hat{X})=(-344,56)^T$
$$ \frac{\partial^2 f}{\partial x_1^2}=2+(-3-x_2)(-6-2x_2)\\ \frac{\partial^2 f}{\partial x_1\partial x_2}=2+(-6-2x_1)(-3-x_2)-(4-6x_1-6x_2-2x_1x_2)\\ \frac{\partial^2 f}{\partial x_2\partial x_1}=2+(-6-2x_2)(-3-x_1)-(4-6x_1-6x_2-2x_1x_2)\\ \frac{\partial^2 f}{\partial x_2^2}=2+(-3-x_1)(-6-2x_1)\\ $$$$ \nabla^2f(X)=\left(\begin{matrix} 2+(-3-x_2)(-6-2x_2)&2+(-6-2x_1)(-3-x_2)-(4-6x_1-6x_2-2x_1x_2)\\ 2+(-6-2x_2)(-3-x_1)-(4-6x_1-6x_2-2x_1x_2)&2+(-3-x_1)(-6-2x_1) \end{matrix}\right)\\ $$$$ \nabla^2f(\hat{X})=\left(\begin{matrix} 164&-56\\ -56&4 \end{matrix}\right)\\ G_k=\nabla^2 f(\hat{X})\\ g_k=\nabla f(\hat{X})\\ G_kd_k=-g_k\\ d_k=G_k^{-1}g_k\\ d_k=\left(\begin{matrix} -0.7097\\ 4.0654 \end{matrix}\right) $$牛顿方向为$d_k=(-0.7097,4.0654)^T$
分别用最速下降法程序和阻尼牛顿法求函数$f(x_1,x_2)=(x_1-2)^4+(x_1-2x_2)^2$的极小值点，取初始点为$x_0=(0,3)^T$
最速下降法
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81import numpy as np import tensorflow as tf def fun(x): # return 100 * (x[0] ** 2 - x[1]) ** 2 + (x[0] - 1) ** 2 测试用 return (x[0] - 2) ** 4 + (x[0] - 2 * x[1]) ** 2 def gfun(x): x = tf.Variable(x, dtype=tf.float32) with tf.GradientTape() as tape: tape.watch(x) z = fun(x) return tape.gradient(z, x).numpy() # return np.array([4 * (x[0] - 2) ** 3 + 2 * (x[0] - 2*x[1]), -4 * (x[0] - 2*x[1])]) def grad_wolfe(fun, gfun, x0): maxk = 5000 k = 0 epsilon = 1e-5 while k < maxk: gk = gfun(x0) dk = -gk if np.linalg.norm(dk) < epsilon: break rho = 0.4 sigma = 0.5 a = 0 b = np.inf alpha = 1 while True: if not ((fun(x0) - fun(x0 + alpha * dk)) >= (-rho * alpha * gfun(x0).T @ dk)): b = alpha alpha = (a + alpha) / 2 continue if not (gfun(x0 + alpha * dk).T @ dk >= sigma * gfun(x0).T @ dk): a = alpha alpha = np.min([2 * alpha, (alpha + b) / 2]) continue break x0 = x0 + alpha * dk k += 1 x = x0 val = fun(x) return x, val, k def grad_armijo(fun, gfun, x0): maxk = 5000 rho = 0.5 sigma = 0.4 k = 0 epsilon = 1e-5 while k < maxk: g = gfun(x0) d = -g if np.linalg.norm(d) < epsilon: break m = 0 mk = 0 while m < 20: if fun(x0 + rho ** m * d) < fun(x0) + sigma * rho ** m * g.T @ d: mk = m break m += 1 x0 = x0 + rho ** mk * d k += 1 x = x0 val = fun(x0) return x, val, k if __name__ == '__main__': x0 = np.array([[0.], [3.]]) x, val, k = grad_armijo(fun, gfun, x0) # Armijo准则 print('近似最优点：{}\n最优值：{}\n迭代次数：{}'.format(x, val.item(), k)) x, val, k = grad_wolfe(fun, gfun, x0) # Wolfe准测 print('近似最优点：{}\n最优值：{}\n迭代次数：{}'.format(x, val.item(), k))运行结果：
阻尼牛顿法：
| |

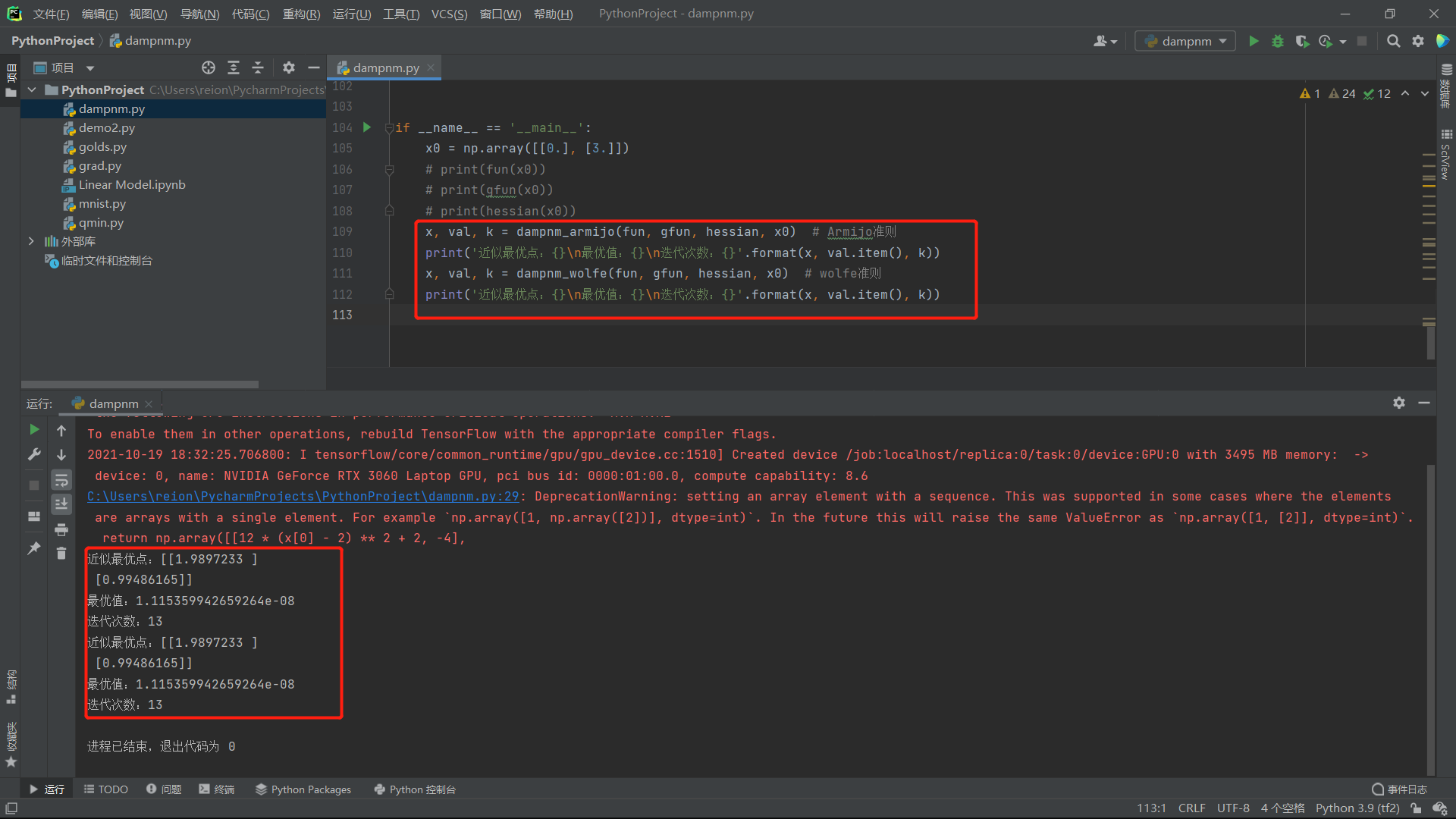

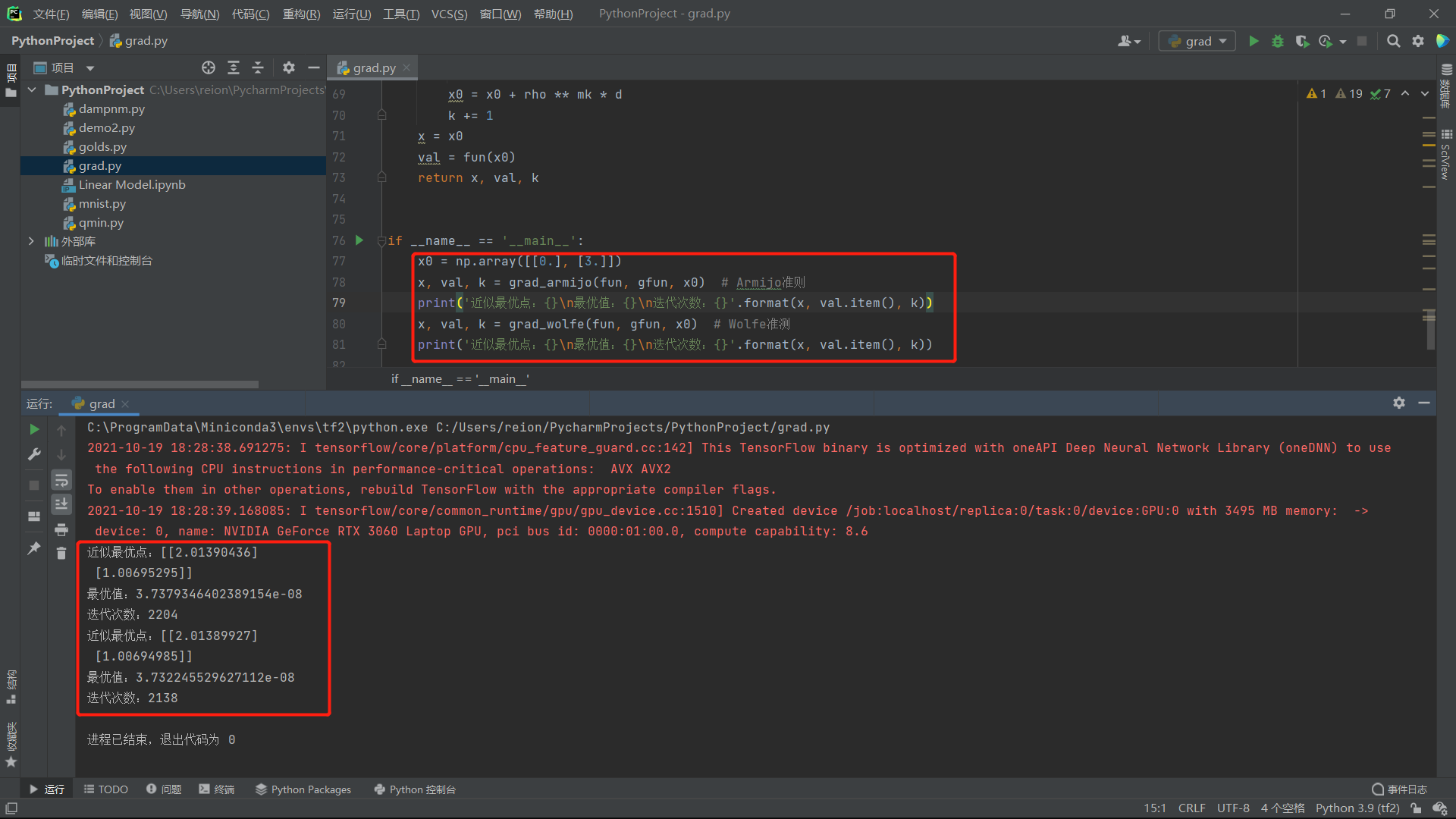

运行结果：
