# 定义一个带激活函数的卷积层
class BasicConv2d(nn.Module):
    def __init__(self, in_channels, out_channels, **kwargs):
        super(BasicConv2d, self).__init__()
        self.conv = nn.Conv2d(in_channels, out_channels, **kwargs)
        self.relu = nn.ReLU(inplace=True)

    def forward(self, x):
        return self.relu(self.conv(x))

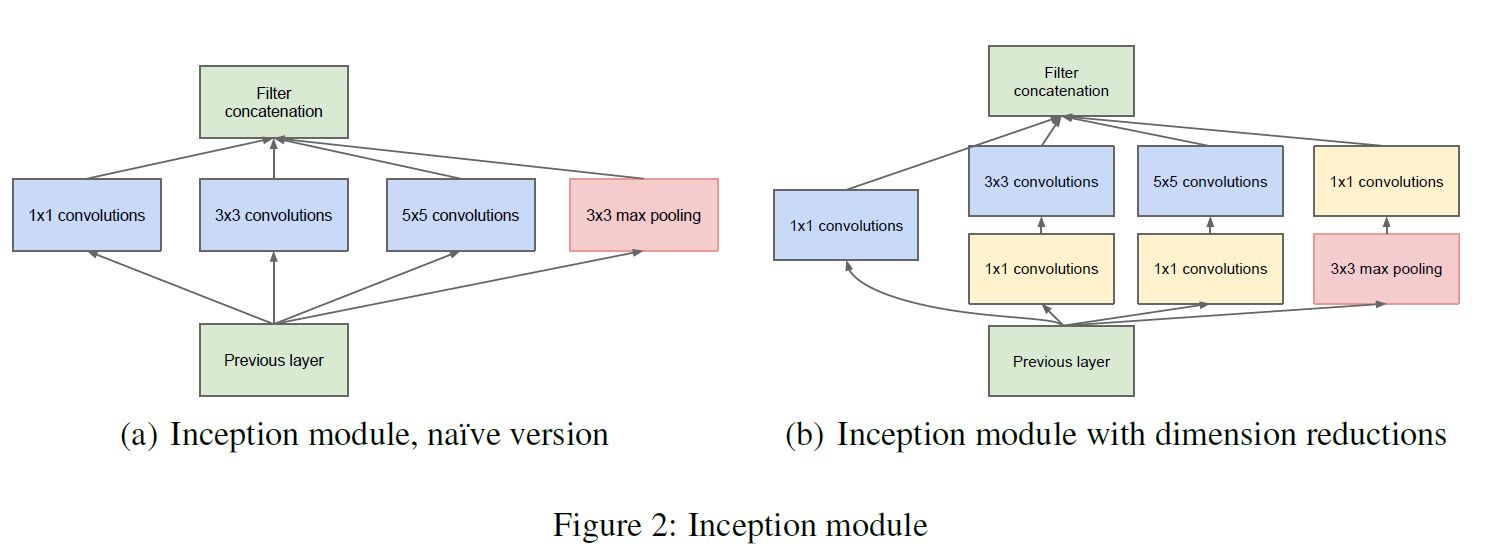

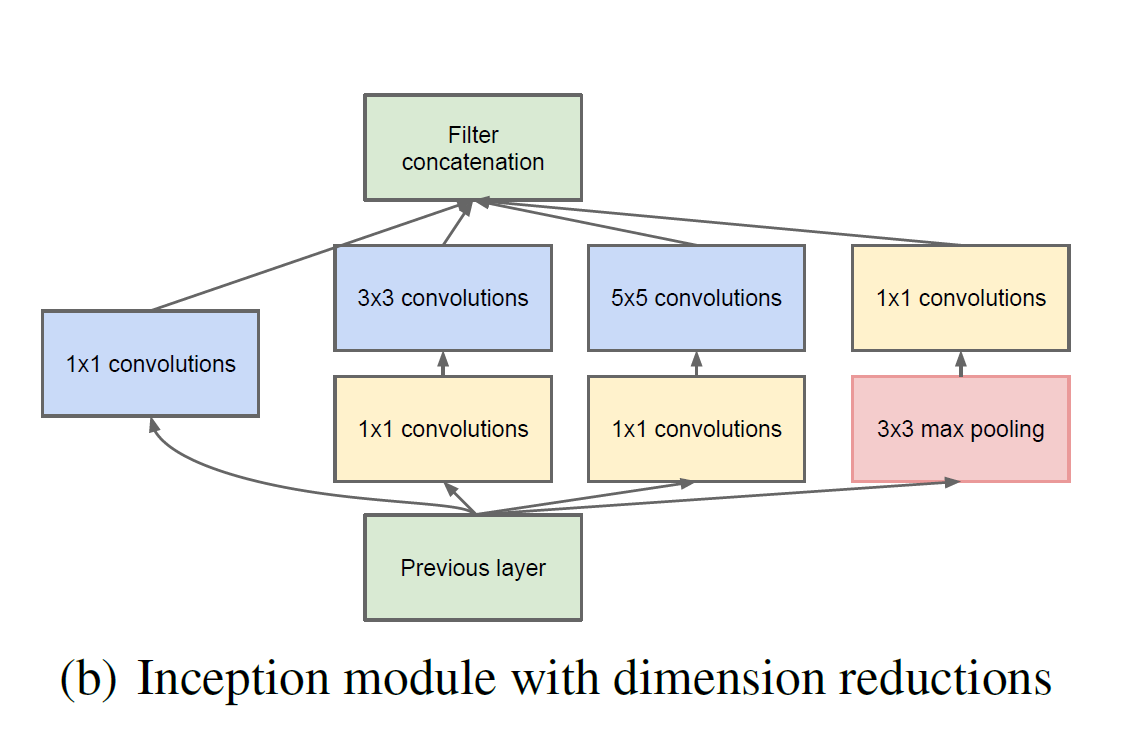

# 定义Inception块
class Inception(nn.Module):
    def __init__(self, in_channels, ch1x1, ch3x3red, ch3x3, ch5x5red, ch5x5, pool_proj):
        super(Inception, self).__init__()
        # 分别编写四个分支
        self.branch1 = BasicConv2d(in_channels, ch1x1, kernel_size=1)

        self.branch2 = nn.Sequential(
            BasicConv2d(in_channels, ch3x3red, kernel_size=1),
            # padding='same'保证输入图像和输出图像大小相同
            BasicConv2d(ch3x3red, ch3x3, kernel_size=3, padding='same')
        )

        self.branch3 = nn.Sequential(
            BasicConv2d(in_channels, ch5x5red, kernel_size=1),
            BasicConv2d(ch5x5red, ch5x5, kernel_size=5, padding='same')
        )

        self.branch4 = nn.Sequential(
            nn.MaxPool2d(kernel_size=3, stride=1, padding='same'),
            BasicConv2d(in_channels, pool_proj, kernel_size=1)
        )

    def forward(self, x):
        branch1 = self.branch1(x)
        branch2 = self.branch2(x)
        branch3 = self.branch3(x)
        branch4 = self.branch4(x)
        # outputs=[branch1,branch2,branch3,branch4]
        # dim=1为通道维度，在通道维度拼接在一起
        return torch.cat([branch1, branch2, branch3, branch4], 1)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

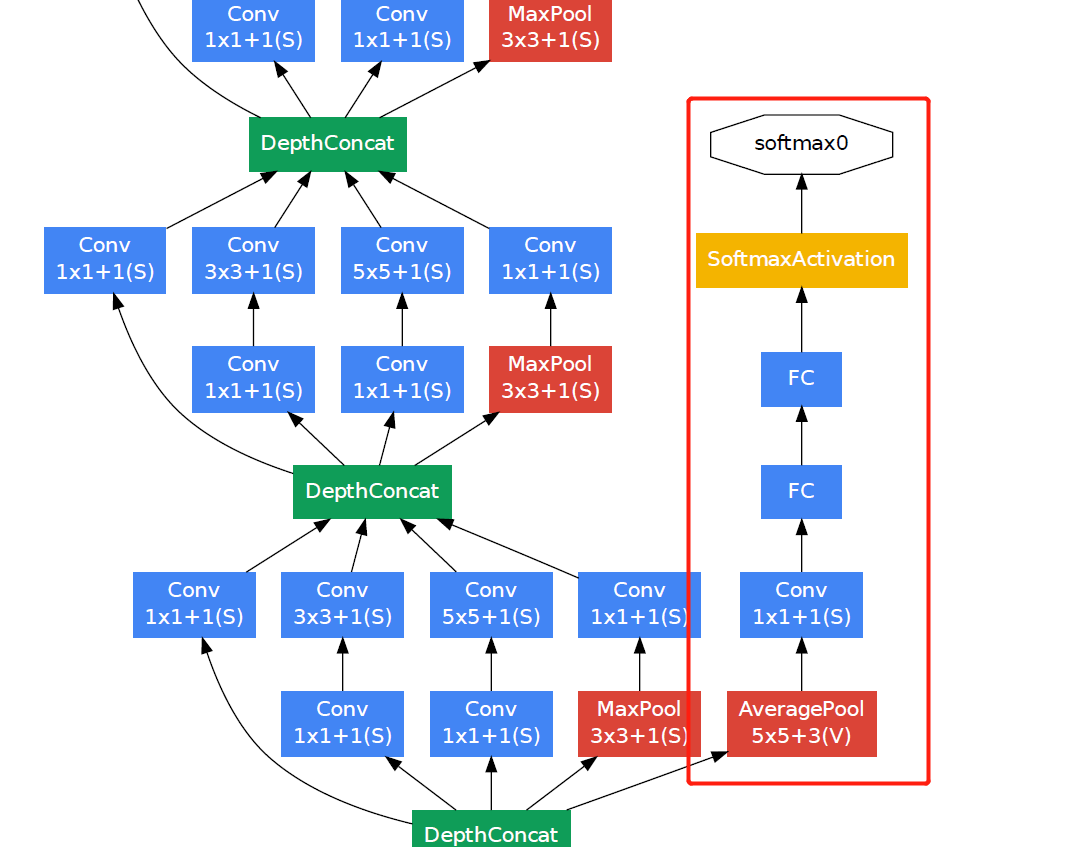

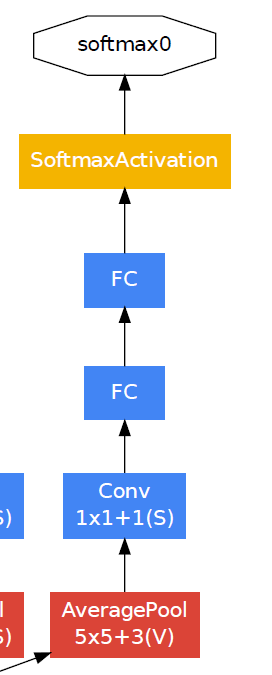

class InceptionAux(nn.Module):
    def __init__(self, in_channels, num_classes):
        super(InceptionAux, self).__init__()
        # 平均池化层
        self.avgPool = nn.AvgPool2d(kernel_size=5, stride=3)
        # output: [batch, 128, 4, 4]
        # 卷积层
        self.conv = BasicConv2d(in_channels, 128, kernel_size=1)

        # 线性层
        self.fc1 = nn.Linear(2048, 1024)
        self.fc2 = nn.Linear(1024, num_classes)

    def forward(self, x):
        # aux1: N x 512 x 14 x 14, aux2: N x 528 x 14 x 14
        x = self.avgPool(x)
        # aux1: N x 512 x 4 x 4, aux2: N x 528 x 4 x 4
        x = self.conv(x)
        # N x 128 x 4 x 4
        x = torch.flatten(x, 1)
        x = torch.dropout(x, 0.7, train=self.training)
        # N x 2048
        x = torch.relu(self.fc1(x), inplace=True)
        x = torch.dropout(x, 0.7, train=self.training)
        # N x 1024
        x = self.fc2(x)
        # N x num_classes
        return x

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98

class GoogLeNet(nn.Module):
    def __init__(self, num_classes=1000, aux_logits=True, init_weights=False):
        super(GoogLeNet, self).__init__()
        self.aux_logits = aux_logits

        self.conv1 = BasicConv2d(3, 64, kernel_size=7, stride=2, padding=3)
        self.maxpool1 = nn.MaxPool2d(3, stride=2, ceil_mode=True)

        self.conv2 = BasicConv2d(64, 64, kernel_size=1)
        self.conv3 = BasicConv2d(64, 192, kernel_size=3, padding=1)
        self.maxpool2 = nn.MaxPool2d(3, stride=2, ceil_mode=True)

        self.inception3a = Inception(192, 64, 96, 128, 16, 32, 32)
        self.inception3b = Inception(256, 128, 128, 192, 32, 96, 64)
        self.maxpool3 = nn.MaxPool2d(3, stride=2, ceil_mode=True)

        self.inception4a = Inception(480, 192, 96, 208, 16, 48, 64)
        self.inception4b = Inception(512, 160, 112, 224, 24, 64, 64)
        self.inception4c = Inception(512, 128, 128, 256, 24, 64, 64)
        self.inception4d = Inception(512, 112, 144, 288, 32, 64, 64)
        self.inception4e = Inception(528, 256, 160, 320, 32, 128, 128)
        self.maxpool4 = nn.MaxPool2d(3, stride=2, ceil_mode=True)

        self.inception5a = Inception(832, 256, 160, 320, 32, 128, 128)
        self.inception5b = Inception(832, 384, 192, 384, 48, 128, 128)

        if self.aux_logits:
            self.aux1 = InceptionAux(512, num_classes)
            self.aux2 = InceptionAux(528, num_classes)

            self.avgpool = nn.AdaptiveAvgPool2d((1, 1))
            self.dropout = nn.Dropout(0.7)
            self.fc = nn.Linear(1024, num_classes)
            if init_weights:
                self._initialize_weights()

                def forward(self, x):
                    # N x 3 x 224 x 224
                    x = self.conv1(x)
                    # N x 64 x 112 x 112
                    x = self.maxpool1(x)
                    # N x 64 x 56 x 56
                    x = self.conv2(x)
                    # N x 64 x 56 x 56
                    x = self.conv3(x)
                    # N x 192 x 56 x 56
                    x = self.maxpool2(x)

                    # N x 192 x 28 x 28
                    x = self.inception3a(x)
                    # N x 256 x 28 x 28
                    x = self.inception3b(x)
                    # N x 480 x 28 x 28
                    x = self.maxpool3(x)
                    # N x 480 x 14 x 14
                    x = self.inception4a(x)
                    # N x 512 x 14 x 14
                    if self.training and self.aux_logits:  # eval model lose this layer
                        aux1 = self.aux1(x)

                        x = self.inception4b(x)
                        # N x 512 x 14 x 14
                        x = self.inception4c(x)
                        # N x 512 x 14 x 14
                        x = self.inception4d(x)
                        # N x 528 x 14 x 14
                        if self.training and self.aux_logits:  # eval model lose this layer
                            aux2 = self.aux2(x)

                            x = self.inception4e(x)
                            # N x 832 x 14 x 14
                            x = self.maxpool4(x)
                            # N x 832 x 7 x 7
                            x = self.inception5a(x)
                            # N x 832 x 7 x 7
                            x = self.inception5b(x)
                            # N x 1024 x 7 x 7

                            x = self.avgpool(x)
                            # N x 1024 x 1 x 1
                            x = torch.flatten(x, 1)
                            # N x 1024
                            x = self.dropout(x)
                            x = self.fc(x)
                            # N x 1000 (num_classes)
                            if self.training and self.aux_logits:  # eval model lose this layer
                                return x, aux2, aux1
                            return x

                        def _initialize_weights(self):
                            for m in self.modules():
                                if isinstance(m, nn.Conv2d):
                                    nn.init.kaiming_uniform_(m.weight, mode='fan_out', nonlinearity='relu')
                                    if m.bias is not None:
                                        nn.init.constant_(m.bias, 0)
                                    elif isinstance(m, nn.Linear):
                                        nn.init.normal_(m.weight, 0, 0.01)
                    nn.init.constant_(m.bias, 0)

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173

import torch
import torch.nn as nn
import torch.nn.functional as F

# 定义一个带激活函数的卷积层
class BasicConv2d(nn.Module):
    def __init__(self, in_channels, out_channels, **kwargs):
        super(BasicConv2d, self).__init__()
        self.conv = nn.Conv2d(in_channels, out_channels, **kwargs)
        self.relu = nn.ReLU(inplace=True)

    def forward(self, x):
        return self.relu(self.conv(x))

# 定义Inception块
class Inception(nn.Module):
    def __init__(self, in_channels, ch1x1, ch3x3red, ch3x3, ch5x5red, ch5x5, pool_proj):
        super(Inception, self).__init__()
        # 分别编写四个分支
        self.branch1 = BasicConv2d(in_channels, ch1x1, kernel_size=1)

        self.branch2 = nn.Sequential(
            BasicConv2d(in_channels, ch3x3red, kernel_size=1),
            # padding='same'保证输入图像和输出图像大小相同
            BasicConv2d(ch3x3red, ch3x3, kernel_size=3, padding=1)
        )

        self.branch3 = nn.Sequential(
            BasicConv2d(in_channels, ch5x5red, kernel_size=1),
            BasicConv2d(ch5x5red, ch5x5, kernel_size=5, padding=2)
        )

        self.branch4 = nn.Sequential(
            nn.MaxPool2d(kernel_size=3, stride=1, padding=1),
            BasicConv2d(in_channels, pool_proj, kernel_size=1)
        )

    def forward(self, x):
        branch1 = self.branch1(x)
        branch2 = self.branch2(x)
        branch3 = self.branch3(x)
        branch4 = self.branch4(x)
        # outputs=[branch1,branch2,branch3,branch4]
        # dim=1为通道维度，在通道维度拼接在一起
        return torch.cat([branch1, branch2, branch3, branch4], 1)

class InceptionAux(nn.Module):
    def __init__(self, in_channels, num_classes):
        super(InceptionAux, self).__init__()
        # 平均池化层
        self.avgPool = nn.AvgPool2d(kernel_size=5, stride=3)
        # output: [batch, 128, 4, 4]
        # 卷积层
        self.conv = BasicConv2d(in_channels, 128, kernel_size=1)

        # 线性层
        self.fc1 = nn.Linear(2048, 1024)
        self.fc2 = nn.Linear(1024, num_classes)

    def forward(self, x):
        # aux1: N x 512 x 14 x 14, aux2: N x 528 x 14 x 14
        x = self.avgPool(x)
        # aux1: N x 512 x 4 x 4, aux2: N x 528 x 4 x 4
        x = self.conv(x)
        # N x 128 x 4 x 4
        x = torch.flatten(x, 1)
        x = torch.dropout(x, 0.7, train=self.training)
        # N x 2048
        x = torch.relu(self.fc1(x))
        x = torch.dropout(x, 0.7, train=self.training)
        # N x 1024
        x = self.fc2(x)
        # N x num_classes
        return x

class GoogLeNet(nn.Module):
    def __init__(self, num_classes=1000, aux_logits=True, init_weights=False):
        super(GoogLeNet, self).__init__()
        self.aux_logits = aux_logits

        self.conv1 = BasicConv2d(3, 64, kernel_size=7, stride=2, padding=3)
        self.maxpool1 = nn.MaxPool2d(3, stride=2, ceil_mode=True)

        self.conv2 = BasicConv2d(64, 64, kernel_size=1)
        self.conv3 = BasicConv2d(64, 192, kernel_size=3, padding=1)
        self.maxpool2 = nn.MaxPool2d(3, stride=2, ceil_mode=True)

        self.inception3a = Inception(192, 64, 96, 128, 16, 32, 32)
        self.inception3b = Inception(256, 128, 128, 192, 32, 96, 64)
        self.maxpool3 = nn.MaxPool2d(3, stride=2, ceil_mode=True)

        self.inception4a = Inception(480, 192, 96, 208, 16, 48, 64)
        self.inception4b = Inception(512, 160, 112, 224, 24, 64, 64)
        self.inception4c = Inception(512, 128, 128, 256, 24, 64, 64)
        self.inception4d = Inception(512, 112, 144, 288, 32, 64, 64)
        self.inception4e = Inception(528, 256, 160, 320, 32, 128, 128)
        self.maxpool4 = nn.MaxPool2d(3, stride=2, ceil_mode=True)

        self.inception5a = Inception(832, 256, 160, 320, 32, 128, 128)
        self.inception5b = Inception(832, 384, 192, 384, 48, 128, 128)

        if self.aux_logits:
            self.aux1 = InceptionAux(512, num_classes)
            self.aux2 = InceptionAux(528, num_classes)

        self.avgpool = nn.AdaptiveAvgPool2d((1, 1))
        self.dropout = nn.Dropout(0.7)
        self.fc = nn.Linear(1024, num_classes)
        if init_weights:
            self._initialize_weights()

    def forward(self, x):
        # N x 3 x 224 x 224
        x = self.conv1(x)
        # N x 64 x 112 x 112
        x = self.maxpool1(x)
        # N x 64 x 56 x 56
        x = self.conv2(x)
        # N x 64 x 56 x 56
        x = self.conv3(x)
        # N x 192 x 56 x 56
        x = self.maxpool2(x)

        # N x 192 x 28 x 28
        x = self.inception3a(x)
        # N x 256 x 28 x 28
        x = self.inception3b(x)
        # N x 480 x 28 x 28
        x = self.maxpool3(x)
        # N x 480 x 14 x 14
        x = self.inception4a(x)
        # N x 512 x 14 x 14
        if self.training and self.aux_logits:  # eval model lose this layer
            aux1 = self.aux1(x)

        x = self.inception4b(x)
        # N x 512 x 14 x 14
        x = self.inception4c(x)
        # N x 512 x 14 x 14
        x = self.inception4d(x)
        # N x 528 x 14 x 14
        if self.training and self.aux_logits:  # eval model lose this layer
            aux2 = self.aux2(x)

        x = self.inception4e(x)
        # N x 832 x 14 x 14
        x = self.maxpool4(x)
        # N x 832 x 7 x 7
        x = self.inception5a(x)
        # N x 832 x 7 x 7
        x = self.inception5b(x)
        # N x 1024 x 7 x 7

        x = self.avgpool(x)
        # N x 1024 x 1 x 1
        x = torch.flatten(x, 1)
        # N x 1024
        x = self.dropout(x)
        x = self.fc(x)
        # N x 1000 (num_classes)
        if self.training and self.aux_logits:  # eval model lose this layer
            return x, aux2, aux1
        return x

    def _initialize_weights(self):
        for m in self.modules():
            if isinstance(m, nn.Conv2d):
                nn.init.kaiming_uniform_(m.weight, mode='fan_out', nonlinearity='relu')
                if m.bias is not None:
                    nn.init.constant_(m.bias, 0)
                elif isinstance(m, nn.Linear):
                    nn.init.normal_(m.weight, 0, 0.01)
                    nn.init.constant_(m.bias, 0)

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137

import os
import sys
import json

import torch
import torch.nn as nn
from torchvision import transforms, datasets
import torch.optim as optim
from tqdm import tqdm

from model import GoogLeNet
from utils import read_split_data, ImageDataset, compute_mean_std

def main():
    # 设置训练设备
    device = torch.device('cuda:0' if torch.cuda.is_available() else 'cpu')
    print('using {} device.'.format(device))

    # 图片路径
    image_path = r"D:\卷积神经网络PPT\AlexNet\Alex_tf\data\flower_photos"
    # 创建训练集

    train_images_path, train_images_label, val_images_path, val_images_label = read_split_data(root=image_path)
    # 训练集均值和标准差字典
    mean_std = compute_mean_std(train_images_path)

    # 设置训练集和验证集的数据增强
    data_transform = {
        'train': transforms.Compose([
            transforms.RandomResizedCrop(224),  # 随机裁剪后缩放到指定大小
            transforms.RandomHorizontalFlip(),  # 随机水平翻转
            transforms.ToTensor(),
            transforms.Normalize(mean_std['mean'], mean_std['std'])  # 标准化
        ]),
        'val': transforms.Compose([
            transforms.Resize((224, 224)),  # 缩放到指定大小
            transforms.ToTensor(),
            transforms.Normalize(mean_std['mean'], mean_std['std'])
        ])
    }

    # 设置批次大小
    batch_size = 32
    # 设置加载数据进程数
    nw = min([os.cpu_count(), batch_size if batch_size > 1 else 0, 8])
    print('using {} dataloader workers every process'.format(nw))
    train_dataset = ImageDataset(train_images_path, train_images_label, transform=data_transform['train'])
    train_num = len(train_dataset)

    # 装载训练集数据
    train_loader = torch.utils.data.DataLoader2(train_dataset,
                                               batch_size=batch_size,
                                               shuffle=True,
                                               pin_memory=True,
                                               num_workers=nw)
    # 创建验证集
    valid_dataset = ImageDataset(val_images_path, val_images_label, transform=data_transform['val'])
    # 装载验证集数据

    valid_loader = torch.utils.data.DataLoader2(valid_dataset,
                                               batch_size=batch_size,
                                               shuffle=False,
                                               pin_memory=True,
                                               num_workers=nw)
    # 记录验证集数据量
    val_num = len(valid_dataset)
    # test_data_iter = iter(validate_loader)
    # test_image, test_label = test_data_iter.next()

    net = GoogLeNet(num_classes=5, aux_logits=True, init_weights=True)
    # 如果要使用官方的预训练权重，注意是将权重载入官方的模型，不是我们自己实现的模型
    # 官方的模型中使用了bn层以及改了一些参数，不能混用
    # import torchvision
    # net = torchvision.models.googlenet(num_classes=5)
    # model_dict = net.state_dict()
    # # 预训练权重下载地址: https://download.pytorch.org/models/googlenet-1378be20.pth
    # pretrain_model = torch.load("googlenet.pth")
    # del_list = ["aux1.fc2.weight", "aux1.fc2.bias",
    #             "aux2.fc2.weight", "aux2.fc2.bias",
    #             "fc.weight", "fc.bias"]
    # pretrain_dict = {k: v for k, v in pretrain_model.items() if k not in del_list}
    # model_dict.update(pretrain_dict)
    # net.load_state_dict(model_dict)
    net.to(device)
    loss_function = nn.CrossEntropyLoss()
    optimizer = optim.Adam(net.parameters(), lr=0.0003)

    epochs = 30
    best_acc = 0.0
    save_path = './googleNet.pth'
    train_steps = len(train_loader)
    for epoch in range(epochs):
        # train
        net.train()
        running_loss = 0.0
        train_bar = tqdm(train_loader, file=sys.stdout)
        for step, data in enumerate(train_bar):
            images, labels = data
            optimizer.zero_grad()
            logits, aux_logits2, aux_logits1 = net(images.to(device))
            loss0 = loss_function(logits, labels.to(device))
            loss1 = loss_function(aux_logits1, labels.to(device))
            loss2 = loss_function(aux_logits2, labels.to(device))
            loss = loss0 + loss1 * 0.3 + loss2 * 0.3
            loss.backward()
            optimizer.step()

            # print statistics
            running_loss += loss.item()

            train_bar.desc = "train epoch[{}/{}] loss:{:.3f}".format(epoch + 1,
                                                                     epochs,
                                                                     loss)

        # validate
        net.eval()
        acc = 0.0  # accumulate accurate number / epoch
        with torch.no_grad():
            val_bar = tqdm(valid_loader, file=sys.stdout)
            for val_data in val_bar:
                val_images, val_labels = val_data
                outputs = net(val_images.to(device))  # eval model only have last output layer
                predict_y = torch.argmax(outputs,1)
                acc += torch.eq(predict_y, val_labels.to(device)).sum().item()

        val_accurate = acc / val_num
        print('[epoch %d] train_loss: %.3f  val_accuracy: %.3f' %
              (epoch + 1, running_loss / train_steps, val_accurate))

        if val_accurate > best_acc:
            best_acc = val_accurate
            torch.save(net.state_dict(), save_path)

    print('Finished Training')

if __name__ == '__main__':
    main()

1
2
3
4
5
6
7

train epoch[29/30] loss:1.303: 100%|██████████| 92/92 [00:28<00:00,  3.19it/s]
100%|██████████| 23/23 [00:18<00:00,  1.28it/s]
[epoch 29] train_loss: 0.995  val_accuracy: 0.795
train epoch[30/30] loss:1.112: 100%|██████████| 92/92 [00:26<00:00,  3.48it/s]
100%|██████████| 23/23 [00:17<00:00,  1.35it/s]
[epoch 30] train_loss: 0.946  val_accuracy: 0.793
Finished Training

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53

import os
import json
import torch
from PIL import Image
from torchvision import transforms
import matplotlib.pyplot as plt
from model import GoogLeNet

def main():
    device = torch.device('cpu')
    data_transform = transforms.Compose([
        transforms.Resize((224, 224)),
        transforms.ToTensor(),
        transforms.Normalize([0.5, 0.5, 0.5], [0.5, 0.5, 0.5])
    ])
    img_path = r'D:/卷积神经网络PPT/AlexNet/Alex_Torch/img.png'
    assert os.path.exists(img_path), "file: '{}' does not exist.".format(img_path)
    img = Image.open(img_path)
    plt.imshow(img)
    img = data_transform(img)
    # 拓展成四维，增加一个批次维度
    img = torch.unsqueeze(img, dim=0)  # [batch_size,channel,height,width]
    # 读取类索引json文件
    json_path = './class_indices.json'
    assert os.path.exists(json_path), "file: '{}' does not exist.".format(json_path)
    with open(json_path, 'r') as f:
        class_indict = json.load(f)
    # 实例化模型
    model = GoogLeNet(num_classes=5, aux_logits=False)
    # 加载训练好的模型权重
    weights_path = './googleNet.pth'
    assert os.path.exists(weights_path), "file: '{}' does not exist.".format(weights_path)
    model.load_state_dict(torch.load(weights_path, map_location=device), strict=False)

    # 设置模型为评估状态
    model.eval()
    # 不跟踪梯度
    with torch.no_grad():
        outputs = torch.squeeze(model(img.to(device))).cpu()
        predict = torch.softmax(outputs, dim=0)
        predict_cla = torch.argmax(predict).numpy()
    print_res = "class: {} prob:{:.3}".format(class_indict[str(predict_cla)],
                                              predict[predict_cla].numpy())
    plt.grid(False)
    plt.axis(False)
    plt.title(print_res)
    for i in range(len(predict)):
        print("class: {:10}   prob: {:.3}".format(class_indict[str(i)],
                                                  predict[i].numpy()))
    plt.show()

if __name__ == '__main__':
    main()

1
2
3
4
5

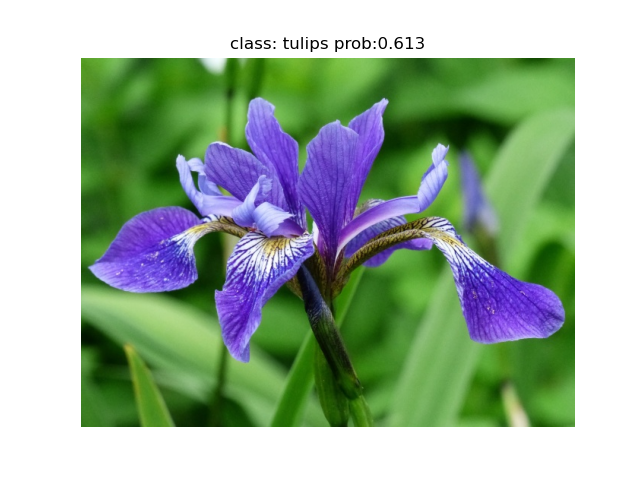

class: daisy        prob: 0.0728
class: dandelion    prob: 0.175
class: roses        prob: 0.0419
class: sunflowers   prob: 0.0971
class: tulips       prob: 0.613

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

# Inception块
class Inception(layers.Layer):
    def __init__(self, ch1x1, ch3x3red, ch3x3, ch5x5red, ch5x5, pool_proj, **kwargs):
        super(Inception, self).__init__(**kwargs)

        self.branch1 = layers.Conv2D(ch1x1, kernel_size=1, activation='relu')
        # padding='same'，输入图像和输出图像大小相同
        self.branch2 = Sequential([
            layers.Conv2D(ch3x3red, kernel_size=1, activation='relu'),
            layers.Conv2D(ch3x3, kernel_size=3, padding='same', activation='relu')
        ])

        self.branch3 = Sequential([
            layers.Conv2D(ch5x5red, kernel_size=1, activation='relu'),
            layers.Conv2D(ch5x5, kernel_size=5, activation='relu')
        ])

        self.branch4 = Sequential([
            layers.MaxPool2D(pool_size=3, strides=1, padding='same'),
            layers.Conv2D(pool_proj, kernel_size=1, activation='relu')
        ])

    # 正向传播，最后将输出沿通道拼接
    def call(self, x, **kwargs):
        branch1 = self.branch1(x)
        branch2 = self.branch2(x)
        branch3 = self.branch3(x)
        branch4 = self.branch4(x)
        return layers.concatenate([branch1, branch2, branch3, branch4])

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

# 辅助分类器
class InceptionAux(layers.Layer):
    def __int__(self, num_classes, **kwargs):
        super(InceptionAux, self).__init__(**kwargs)
        self.avgPool = layers.AvgPool2D(pool_size=5, strides=3)
        self.conv = layers.Conv2D(128, kernel_size=1, activation='relu')

        self.fc1 = layers.Dense(1024, activation='relu')
        self.fc2 = layers.Dense(num_classes)
        self.softmax = layers.Softmax()

    # 正向传播
    def call(self, inputs, **kwargs):
        # aux1: N x 512 x 14 x 14, aux2: N x 528 x 14 x 14
        x = self.averagePool(inputs)
        # aux1: N x 512 x 4 x 4, aux2: N x 528 x 4 x 4
        x = self.conv(x)
        # N x 128 x 4 x 4
        x = layers.Flatten()(x)
        x = layers.Dropout(rate=0.5)(x)
        # N x 2048
        x = self.fc1(x)
        x = layers.Dropout(rate=0.5)(x)
        # N x 1024
        x = self.fc2(x)
        # N x num_classes
        x = self.softmax(x)

        return x

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

def GoogLeNet(im_height=224, im_width=224, class_num=1000, aux_logits=False):
    # tensorflow中的tensor通道排序是NHWC
    input_image = layers.Input(shape=(im_height, im_width, 3), dtype="float32")
    # (None, 224, 224, 3)
    x = layers.Conv2D(64, kernel_size=7, strides=2, padding="SAME", activation="relu", name="conv2d_1")(input_image)
    # (None, 112, 112, 64)
    x = layers.MaxPool2D(pool_size=3, strides=2, padding="SAME", name="maxpool_1")(x)
    # (None, 56, 56, 64)
    x = layers.Conv2D(64, kernel_size=1, activation="relu", name="conv2d_2")(x)
    # (None, 56, 56, 64)
    x = layers.Conv2D(192, kernel_size=3, padding="SAME", activation="relu", name="conv2d_3")(x)
    # (None, 56, 56, 192)
    x = layers.MaxPool2D(pool_size=3, strides=2, padding="SAME", name="maxpool_2")(x)

    # (None, 28, 28, 192)
    x = Inception(64, 96, 128, 16, 32, 32, name="inception_3a")(x)
    # (None, 28, 28, 256)
    x = Inception(128, 128, 192, 32, 96, 64, name="inception_3b")(x)

    # (None, 28, 28, 480)
    x = layers.MaxPool2D(pool_size=3, strides=2, padding="SAME", name="maxpool_3")(x)
    # (None, 14, 14, 480)
    x = Inception(192, 96, 208, 16, 48, 64, name="inception_4a")(x)
    if aux_logits:
        aux1 = InceptionAux(class_num, name="aux_1")(x)

    # (None, 14, 14, 512)
    x = Inception(160, 112, 224, 24, 64, 64, name="inception_4b")(x)
    # (None, 14, 14, 512)
    x = Inception(128, 128, 256, 24, 64, 64, name="inception_4c")(x)
    # (None, 14, 14, 512)
    x = Inception(112, 144, 288, 32, 64, 64, name="inception_4d")(x)
    if aux_logits:
        aux2 = InceptionAux(class_num, name="aux_2")(x)

    # (None, 14, 14, 528)
    x = Inception(256, 160, 320, 32, 128, 128, name="inception_4e")(x)
    # (None, 14, 14, 532)
    x = layers.MaxPool2D(pool_size=3, strides=2, padding="SAME", name="maxpool_4")(x)

    # (None, 7, 7, 832)
    x = Inception(256, 160, 320, 32, 128, 128, name="inception_5a")(x)
    # (None, 7, 7, 832)
    x = Inception(384, 192, 384, 48, 128, 128, name="inception_5b")(x)
    # (None, 7, 7, 1024)
    x = layers.AvgPool2D(pool_size=7, strides=1, name="avgpool_1")(x)

    # (None, 1, 1, 1024)
    x = layers.Flatten(name="output_flatten")(x)
    # (None, 1024)
    x = layers.Dropout(rate=0.4, name="output_dropout")(x)
    x = layers.Dense(class_num, name="output_dense")(x)
    # (None, class_num)
    aux3 = layers.Softmax(name="aux_3")(x)

    if aux_logits:
        model = models.Model(inputs=input_image, outputs=[aux1, aux2, aux3])
    else:
        model = models.Model(inputs=input_image, outputs=aux3)
    return model

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115

from tensorflow.keras import layers, models, Model, Sequential

def GoogLeNet(im_height=224, im_width=224, num_classes=1000, aux_logits=False):
    # tensorflow中的tensor通道排序是[batch, height, width, channel]
    input_image = layers.Input(shape=(im_height, im_width, 3), dtype="float32")
    # (None, 224, 224, 3)
    x = layers.Conv2D(64, kernel_size=7, strides=2, padding="SAME", activation="relu", name="conv2d_1")(input_image)
    # (None, 112, 112, 64)
    x = layers.MaxPool2D(pool_size=3, strides=2, padding="SAME", name="maxpool_1")(x)
    # (None, 56, 56, 64)
    x = layers.Conv2D(64, kernel_size=1, activation="relu", name="conv2d_2")(x)
    # (None, 56, 56, 64)
    x = layers.Conv2D(192, kernel_size=3, padding="SAME", activation="relu", name="conv2d_3")(x)
    # (None, 56, 56, 192)
    x = layers.MaxPool2D(pool_size=3, strides=2, padding="SAME", name="maxpool_2")(x)

    # (None, 28, 28, 192)
    x = Inception(64, 96, 128, 16, 32, 32, name="inception_3a")(x)
    # (None, 28, 28, 256)
    x = Inception(128, 128, 192, 32, 96, 64, name="inception_3b")(x)

    # (None, 28, 28, 480)
    x = layers.MaxPool2D(pool_size=3, strides=2, padding="SAME", name="maxpool_3")(x)
    # (None, 14, 14, 480)
    x = Inception(192, 96, 208, 16, 48, 64, name="inception_4a")(x)
    if aux_logits:
        aux1 = InceptionAux(num_classes, name="aux_1")(x)

    # (None, 14, 14, 512)
    x = Inception(160, 112, 224, 24, 64, 64, name="inception_4b")(x)
    # (None, 14, 14, 512)
    x = Inception(128, 128, 256, 24, 64, 64, name="inception_4c")(x)
    # (None, 14, 14, 512)
    x = Inception(112, 144, 288, 32, 64, 64, name="inception_4d")(x)
    if aux_logits:
        aux2 = InceptionAux(num_classes, name="aux_2")(x)

    # (None, 14, 14, 528)
    x = Inception(256, 160, 320, 32, 128, 128, name="inception_4e")(x)
    # (None, 14, 14, 532)
    x = layers.MaxPool2D(pool_size=3, strides=2, padding="SAME", name="maxpool_4")(x)

    # (None, 7, 7, 832)
    x = Inception(256, 160, 320, 32, 128, 128, name="inception_5a")(x)
    # (None, 7, 7, 832)
    x = Inception(384, 192, 384, 48, 128, 128, name="inception_5b")(x)
    # (None, 7, 7, 1024)
    x = layers.AvgPool2D(pool_size=7, strides=1, name="avgpool_1")(x)

    # (None, 1, 1, 1024)
    x = layers.Flatten(name="output_flatten")(x)
    # (None, 1024)
    x = layers.Dropout(rate=0.4, name="output_dropout")(x)
    x = layers.Dense(num_classes, name="output_dense")(x)
    # (None, num_classes)
    aux3 = layers.Softmax(name="aux_3")(x)

    if aux_logits:
        model = models.Model(inputs=input_image, outputs=[aux1, aux2, aux3])
    else:
        model = models.Model(inputs=input_image, outputs=aux3)
    return model

class Inception(layers.Layer):
    def __init__(self, ch1x1, ch3x3red, ch3x3, ch5x5red, ch5x5, pool_proj, **kwargs):
        super(Inception, self).__init__(**kwargs)
        self.branch1 = layers.Conv2D(ch1x1, kernel_size=1, activation="relu")

        self.branch2 = Sequential([
            layers.Conv2D(ch3x3red, kernel_size=1, activation="relu"),
            layers.Conv2D(ch3x3, kernel_size=3, padding="SAME", activation="relu")])  # output_size= input_size

        self.branch3 = Sequential([
            layers.Conv2D(ch5x5red, kernel_size=1, activation="relu"),
            layers.Conv2D(ch5x5, kernel_size=5, padding="SAME", activation="relu")])  # output_size= input_size

        self.branch4 = Sequential([
            layers.MaxPool2D(pool_size=3, strides=1, padding="SAME"),  # caution: default strides==pool_size
            layers.Conv2D(pool_proj, kernel_size=1, activation="relu")])  # output_size= input_size

    def call(self, inputs, **kwargs):
        branch1 = self.branch1(inputs)
        branch2 = self.branch2(inputs)
        branch3 = self.branch3(inputs)
        branch4 = self.branch4(inputs)
        outputs = layers.concatenate([branch1, branch2, branch3, branch4])
        return outputs

class InceptionAux(layers.Layer):
    def __init__(self, num_classes, **kwargs):
        super(InceptionAux, self).__init__(**kwargs)
        self.averagePool = layers.AvgPool2D(pool_size=5, strides=3)
        self.conv = layers.Conv2D(128, kernel_size=1, activation="relu")

        self.fc1 = layers.Dense(1024, activation="relu")
        self.fc2 = layers.Dense(num_classes)
        self.softmax = layers.Softmax()

    def call(self, inputs, **kwargs):
        # aux1: N x 512 x 14 x 14, aux2: N x 528 x 14 x 14
        x = self.averagePool(inputs)
        # aux1: N x 512 x 4 x 4, aux2: N x 528 x 4 x 4
        x = self.conv(x)
        # N x 128 x 4 x 4
        x = layers.Flatten()(x)
        x = layers.Dropout(rate=0.7)(x)
        # N x 2048
        x = self.fc1(x)
        x = layers.Dropout(rate=0.7)(x)
        # N x 1024
        x = self.fc2(x)
        # N x num_classes
        x = self.softmax(x)

        return x
